OCTAGONAL POST MEDIUM
Innovation design
Long lifetime
Cost efficient
Stepless positioning bracket
product description
DESCRIPTION:

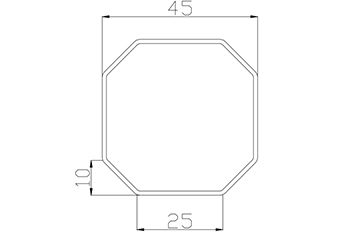

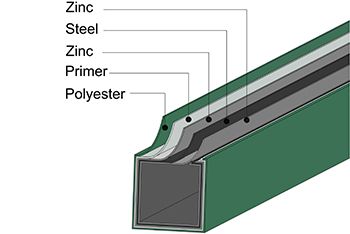

OCTAGONAL POST MEDIUM is an octagonal section welded tube made from Sendimir galvanized coil then powder coating to get extra corrosion resistance. Fixation of panels with 2 different specific brackets depending on your preference. with special designed slot, so that customer can position the 3 wire holders all height of the post like they want. This gives customer flexibility and make installation faster.
FINISH:
| Galvanized and powder coated | |
 |  |
| Diameter mm | Thickness mm | Length mm | No. of brackets needed | I/V cm3 |
| 45 | 1.25 | 1000 | 2 | 2.26 |
| 45 | 1.25 | 1200 | 2 | 2.26 |
| 45 | 1.25 | 1500 | 2 | 2.26 |
| 45 | 1.25 | 1700 | 3 | 2.26 |
| 45 | 1.25 | 2000 | 3 | 2.26 |
| 45 | 1.25 | 2200 | 3 | 2.26 |
| 45 | 1.25 | 2400 | 4 | 2.26 |
| 45 | 1.25 | 2600 | 4 | 2.26 |
