CLEAR VIEW MEDIUM
Efficient deterrence
Long lifetime
Easy installation
Complete system
product description
DESCRIPTION:

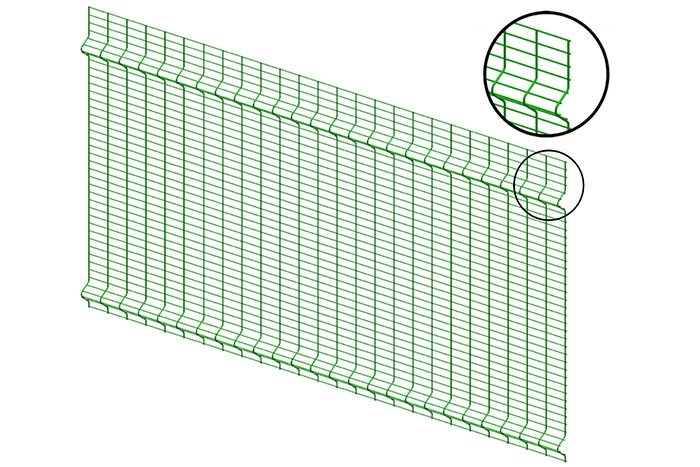

CLEAR VIEW MEDIUM is welded mesh panel with 1” = 25.4mm axis distance of horizontal wires, This mesh is perfect combination to optimize the cost and security.
FINISH:
| Galvanized and powder coated | Zinc Aluminum and powder coated | Galvanized and plastic dip coated | Hot dip galvanized |
  | |  |  |
| Mesh mm | Vertical Wire dia mm | Horizontal Wire Dia mm | Height mm | V bends | Width mm | |
| 76.2x25.4 | 4 | 3 | 1200 | 2 | 2515 | 3050 |
| 76.2x25.4 | 4 | 3 | 1800 | 4 | 2515 | 3050 |
| 76.2x25.4 | 4 | 3 | 2000 | 4 | 2515 | 3050 |
| 76.2x25.4 | 4 | 3 | 2200 | 4 | 2515 | 3050 |
| 76.2x25.4 | 4 | 3 | 2400 | 4 | 2515 | 3050 |
