355 2D PRISON MESH
High security
Efficient deterrence
Long lifetime
Easy installation
Complete system
product description
DESCRIPTION:
355 2D PRISON MESH is welded mesh panel with 1/2” = 12.7mm axis distance of horizontal wires. The small mesh opening make it impossible to climb or use any tool to cut. Besides the small mesh opening, and using 6mm diameter vertical wire, this mesh has extra horizontal wire every 15cm on the other side of the panel gives the panel extra rigidity.

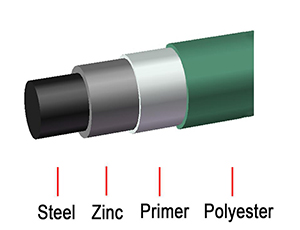

FINISH:
| Galvanized and powder coated | Zinc Aluminum and powder coated | Galvanized and plastic dip coated |
  |  |  |
| Mesh mm | Vertical Wire dia mm | Horizontal Wire Dia mm | Height mm | V bends | Width mm | |
| 76.2x12.7 | 6 | 4 | 1200 | 2 | 2515 | 3050 |
| 76.2x12.7 | 6 | 4 | 1800 | 4 | 2515 | 3050 |
| 76.2x12.7 | 6 | 4 | 2000 | 4 | 2515 | 3050 |
| 76.2x12.7 | 6 | 4 | 2200 | 4 | 2515 | 3050 |
| 76.2x12.7 | 6 | 4 | 2400 | 4 | 2515 | 3050 |
